A310 Enerpac Arbor Hydraulic Press, 10 Ton

The A310 (A-310) 10 Ton Arbor Hydraulic Press from Enerpac is the perfect tool for any heavy-duty pressing task. With 10 tons of force, it can handle any job you throw at it. Its durable construction ensures that it will last for years to come. And with its easy-to-use design, you can easily set up and operate the press. Buy this amazing press online now and get the job done quickly and efficiently. Don't wait, call (803) 372-8831 with any questions you may have.

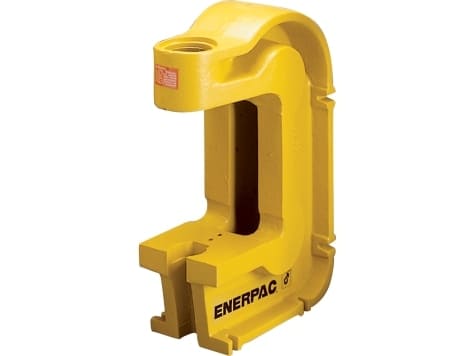

A310 (A-310) 10 Ton Arbor Hydraulic Press from Enerpac. Foot mounting holes for horozontal or vertical positioning. Machined work surfaces for easier fixturing and slotted back to simplify loading and unloading of longer parts.

General Information:

Maximum Operating Pressure: 10,000 psi
Capacity: 10 Tons
Maximum Vertical Daylight: 9.06 in
Maximum Bed Width: 5.31 in
Compatible Cylinders: RC101,RC102,RC104,RC106,RC108,RC1010,RC1012,RC1014
Weight: 62 lbs
Model: A310
Series: A

Dimensions:

Dimension A: 16.31 in
Dimension B: 11.06 in
Dimension C: 9.06 in
Dimension D: 7.25 in
Dimension E: 5.94 in
Dimension F: 2 1/4 - 14 un
Dimension G: 2.5 in
Dimension H: 4.81 in
Dimension J: 0.75 in
Dimension K: 3.75 in
Dimension L: 6.88 in
Dimension M: 2.56 in
Dimension N: 2.13 in
Dimension O: 8.63 in

Catalog Downloads

A310 Enerpac Arbor Press Catalog (pdf)
