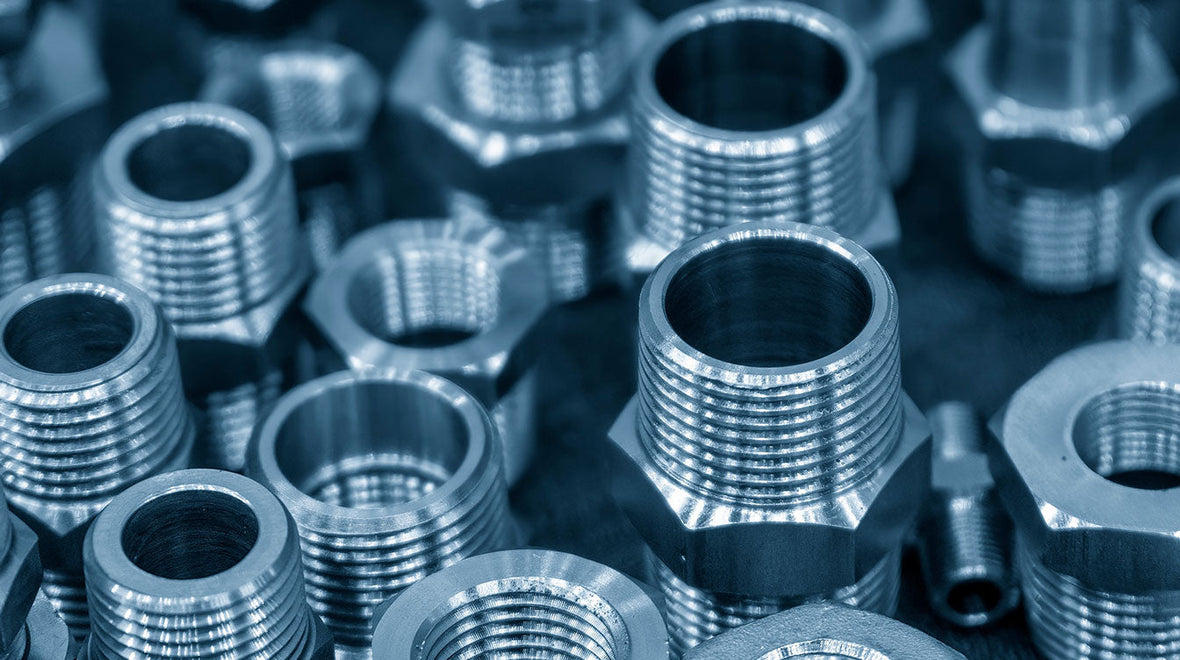

NPT vs NPTF: Key Differences and Compatibility Explained
When it comes to pipe thread connections, understanding the difference between NPT and NPTF, specifically in the context of NPT vs NPTF, is crucial. NPT threads require sealing compounds for a leak-proof connection, while NPTF threads create a metal-to-metal seal without them. This article will explain the key differences and guide you on when to use each type.
Key Takeaways
- NPT threads require external sealants for leak-proof connections, while NPTF threads achieve a mechanical seal without additional materials, making them suitable for high-pressure and fuel applications.
- NPT and NPTF threads are not interchangeable; using the wrong type can lead to leaks, system failures, and safety hazards.
- Proper selection and installation of thread types are essential for various applications, ensuring reliability in plumbing systems and high-pressure environments.
Understanding NPT and NPTF Threads
NPT and NPTF threads are fundamental to creating robust and reliable pipe connections. Both types of threads are designed with a tapered form, which helps in achieving strong, vibration-resistant connections. While they share some similarities, their applications and performance can differ significantly, necessitating a closer look.
Thread standards play a crucial role in pipe fittings, as NPT and NPTF are both types of tapered pipe thread defined by specific standards such as ANSI B1.20.1 for NPT and ANSI B1.20.3 for NPTF.
We’ll delve into what differentiates NPT and NPTF threads. Knowing their design, standards, and applications will help you make informed decisions in plumbing and industrial settings. Differences in thread profiles also play a key role in their performance and compatibility.
What is NPT (National Pipe Tapered) Threading?
NPT, or National Pipe Tapered threading, is a standard type of pipe thread used extensively in the United States. Defined by the ANSI B1.20.1 standard, the NPT thread is designed to create leak-proof seals in plumbing, hydraulic, and industrial systems. The conical design of NPT threads, with a specific taper per inch, allows them to compress and form a tight seal when tightened, which is essential for preventing leaks in various applications involving pipe threads. NPT threads are defined by a specific number of threads per inch, and their thread form features flat peaks and valleys to ensure proper engagement and sealing.
NPT threading is widely used due to its versatility and effectiveness. You’ll find NPT fittings in everything from residential plumbing systems to complex industrial machinery. NPT threads have standardized thread lengths, which helps ensure compatibility across fittings. NPT threading knowledge helps in selecting the right fittings for seamless project integration.
What is NPTF (National Pipe Tapered Fuel) Threading?
NPTF, or National Pipe Tapered Fuel threading, takes the concept of tapered threads a step further by providing a mechanical seal without the need for additional sealing compounds. Defined by ANSI B1.20.3, NPTF threads are specifically designed for fuel and fluid systems where a secure, leak-proof connection is paramount, including applications involving national pipe thread fuel.
The unique design of NPTF threads, including specific thread roots that interfere with the crest of the mating thread—these are known as NPTF thread roots—ensures a tight metal-to-metal seal. The internal thread profile is engineered for an interference fit. This feature makes NPTF threads particularly suitable for applications involving combustible fluids or gases, where even the slightest leak could have serious consequences. The female thread in NPTF fittings is designed to work with the male thread to ensure a leak-proof connection, especially in hydraulic and metal pipe applications.
External Thread Considerations
When it comes to achieving a truly leak-proof connection in piping systems, the quality and design of external threads play a pivotal role. External threads—those found on the outside of pipes and fittings—are the primary interface for joining components in both NPT (National Pipe Taper) and NPTF (National Pipe Taper Fuel) systems. Their precise construction is essential for the sealing effectiveness of any pipe thread connection.
In NPT national pipe and NPTF national pipe systems, the external threads are tapered, which means they gradually decrease in diameter along the length of the thread. This taper is critical for creating the interference fit that helps form a tight seal. For NPT threads, the external thread relies on both the taper and the use of thread sealants to prevent leaks. In contrast, NPTF external threads are engineered to work with the internal threads of a fitting to create a metal-to-metal seal, often without the need for additional sealing compounds.
The effectiveness of the seal depends on several factors, including the accuracy of the thread form, the condition of the threads, and the compatibility between the external and internal threads. Any damage, debris, or deviation from the standard thread profile can compromise the leak-proof nature of the connection. For NPTF threads, in particular, even minor imperfections in the external thread can prevent the necessary thread form deformation that ensures a leak-free joint.
To maximize sealing effectiveness, always inspect external threads for wear or damage before installation. Ensure that the threads conform to the appropriate national pipe standards and that they are clean and free from contaminants. Proper alignment and engagement of the threads are also crucial—cross-threading or over-tightening can damage the thread profile and reduce the integrity of the seal.
By paying close attention to the design, preparation, and installation of external threads in both NPT and NPTF systems, you can significantly enhance the reliability and leak-proof performance of your pipe connections.
Key Differences Between NPT and NPTF Threads
While NPT and NPTF threads may appear similar at first glance, comparing NPT threads reveals a significant difference that impacts their performance and suitability for different applications. Knowing these differences aids in choosing the appropriate NPTF thread type and maintaining connection integrity, particularly in relation to thread form deformation.
The primary differences between NPT and NPTF threads lie in their design and sealing mechanisms. Differences in major and minor diameters, as well as pitch diameter, are critical for determining compatibility and sealing ability. Both thread types often have the same pitch diameter and the same thread lengths, but their thread profiles and tolerances differ, affecting their interchangeability and sealing performance. NPT threads rely on external sealants to achieve leak-proof connections, whereas NPTF threads are designed to create a mechanical seal without additional compounds. Here are more details on these differences. Minor diameters and pitch diameters are important inspection points for ensuring proper fit and leak-proof performance.
Thread Design and Form Differences
Both NPT and NPTF threads feature a 60-degree tapered thread angle, which helps create a strong, vibration-resistant connection. However, both the NPT thread design and form differ in critical ways that affect their performance. NPT threads are standardized under ANSI B1.20.1 and have sharp edges for tight engagement, but they do not achieve the precise metal-to-metal seal that NPTF threads are engineered for.
In contrast, NPTF threads are designed with specific NPT thread roots that interfere with the NPTF thread crests of the mating threads, creating a tighter and more reliable seal. This design difference is key to understanding why NPTF threads are preferred in high-pressure and fuel systems where a leak-proof seal is crucial. Thread roots are designed to enhance the effectiveness of this seal, especially when considering how NPTF thread crests fall.
Sealing Mechanisms: NPT vs NPTF
NPT threads rely on additional sealants like PTFE tape or Teflon tape to create a leak-proof connection, ensuring a reliable NPT connection. This reliance on external materials means that the quality of the sealing compound and thread compound can vary based on the installation technique and the sealant used.
NPTF threads, on the other hand, achieve a mechanical seal through the precise interference fit between the thread roots and mating thread crests. This mechanical sealing mechanism of NPTF threads ensures a tighter seal, especially in applications involving high pressures or combustible fluids.
NPT fittings in NPTF applications can cause leaks and contamination, as NPT threads lack the same sealing effectiveness without additional compounds.
When inspecting NPT threads, only a single plug or single plug gauge is typically required to verify the internal thread size, simplifying the inspection process. In contrast, NPTF threads require special plug gauges and the inspection of additional threads, such as L2 and L3, to ensure proper fit and sealing. For male threads, ring gages are used to check the ring gage minor diameter, while the plug gage major diameter is a critical parameter for quality control during inspection.
Compatibility and Interchangeability
When it comes to compatibility, it’s crucial to understand that NPT and NPTF threads are not fully interchangeable. Their different designs and sealing mechanisms mean that mixing these threads can lead to significant issues, including leaks and system failures.
We’ll examine if NPT and NPTF threads can be interchanged and the associated risks. Knowing these factors is vital for maintaining your piping system’s integrity and safety.
Are NPT and NPTF Threads Interchangeable?
Despite their similar appearances, NPT and NPTF threads are not fully interchangeable. NPT fittings rely on sealants to prevent leaks, while NPTF fittings provide a metal-to-metal seal without the need for additional sealing materials. This fundamental difference means that using NPT fittings in NPTF systems can compromise the seal and lead to leaks.
NPTF threads require precise fitting to achieve their mechanical seal, whereas NPT threads are more forgiving and can accommodate slight variations in fitment. Thus, matching the thread type to application requirements ensures a reliable, leak-proof connection.
Risks of Interchanging NPT and NPTF Threads
Mixing NPT and NPTF threads can result in serious issues, including leaks, system failures, and safety hazards. Using NPT fittings without sealing compounds in NPTF applications can lead to leaks, which can contaminate fluids and damage internal components.
The improper fitment and reliance on external sealants with NPT threads in NPTF systems can compromise the integrity of the connection and lead to catastrophic failures. Using the correct thread type for each application is key to maintaining safety and performance standards.
Practical Applications and Best Practices
NPT and NPTF threads are widely used across various industries, from plumbing to high-pressure fuel systems. NPTF threads are especially important in high-pressure systems where a reliable, leak-proof seal is required. Choosing the right thread type and following proper installation practices, including NPT requirements, are essential for ensuring reliable and leak-proof connections.
We’ll discuss choosing the right male thread type for your applications and provide tips for proper installation of female threads to prevent leaks and maintain system integrity, including the importance of thread form.
Selecting the Right Thread Type for Your Application
Choosing the right thread type depends on your application’s requirements. NPTF threads are perfect for high-pressure and fuel systems due to their reliable, leak-proof seals without additional sealants. NPT threads are a cost-effective, widely used option for general plumbing, water, and gas systems.
Consider factors such as system pressure, fluid type, and regional standards when selecting the thread type in hydraulic systems. Matching thread types and ensuring all components are compatible is crucial for maintaining system integrity and preventing leaks.
Installation Tips for NPT and NPTF Threads
Correctly installing NPT and NPTF threads is vital for preventing leaks and ensuring system functionality. Clean and inspect threads thoroughly before installation. Use thread sealant or tape for NPT threads to ensure a leak-proof connection.
Ensure that NPTF threads are properly fitted to achieve the mechanical seal for which they are designed. Following these installation tips will help maintain the integrity of your piping systems and prevent potential issues.
Industry-Specific Uses of NPT and NPTF Threads
NPT and NPTF threads are crucial in various industries, providing secure and leak-resistant connections in NPT applications ranging from residential plumbing to high-pressure fuel systems. Knowing their specific uses helps in selecting the right thread type for your industry needs.
Here’s how various industries use NPT and NPTF threads, highlighting their importance in ensuring safe, reliable connections.
NPT Threads in Plumbing and General Piping
NPT threads are a staple in residential plumbing systems, providing reliable NPT connections for water distribution and general piping needs. They are also widely used in HVAC systems, where standardization in duct and pipe fittings is essential.
General manufacturing and construction industries prefer NPT threads due to their widespread use and compatibility with various systems. NPT fittings are typically used for low- to medium-pressure systems, making them a versatile and cost-effective choice.
NPTF Threads in High-Pressure and Fuel Systems
NPTF threads are preferred in critical fuel systems and high-pressure applications due to their ability to provide a reliable seal without sealants. The automotive sector, in particular, relies on NPTF threads for fuel line connections, ensuring safe and leak-proof seals.
In applications where sealants could contaminate the fluids being transported, NPTF threads offer a superior solution. Their design ensures that even under high temperatures and pressures, the connections remain secure and leak-free, providing a leak-free connection. Self-sealing thread sealants provide an additional layer of protection in these scenarios.
Summary
Understanding the differences between NPT and NPTF threads is essential for selecting the right type for your applications. NPT threads are suitable for general plumbing and moderate-pressure systems, while NPTF threads are ideal for high-pressure and fuel systems where leak-proof performance is critical.
By considering the specific requirements of your systems and following proper installation practices, you can ensure reliable and secure connections. Whether you’re working on a residential plumbing project or a high-pressure fuel system, selecting the right thread type is key to maintaining safety and performance.
Frequently Asked Questions
Are NPT and NPTF threads the same?
NPT and NPTF threads are not the same; they have distinct designs and sealing methods despite their similar appearance.
Can I use NPT fittings in NPTF applications?
Using NPT fittings in NPTF applications is not recommended, as NPT fittings depend on sealants that may fail to create a reliable seal in NPTF systems.
What are the main applications for NPT threads?
NPT threads are primarily utilized in residential plumbing, HVAC systems, and general manufacturing due to their effective sealing capabilities. This makes them essential in various applications requiring secure connections.
Why are NPTF threads preferred in fuel systems?
NPTF threads are preferred in fuel systems because they create a reliable, leak-proof metal-to-metal seal, essential for maintaining safety and integrity under high-pressure conditions.
What should I consider when selecting a thread type?
When selecting a thread type, it is essential to consider system pressure, fluid type, regional standards, and the compatibility of all components to ensure optimal performance.
